Full Ocean Depth Altimeter Launched

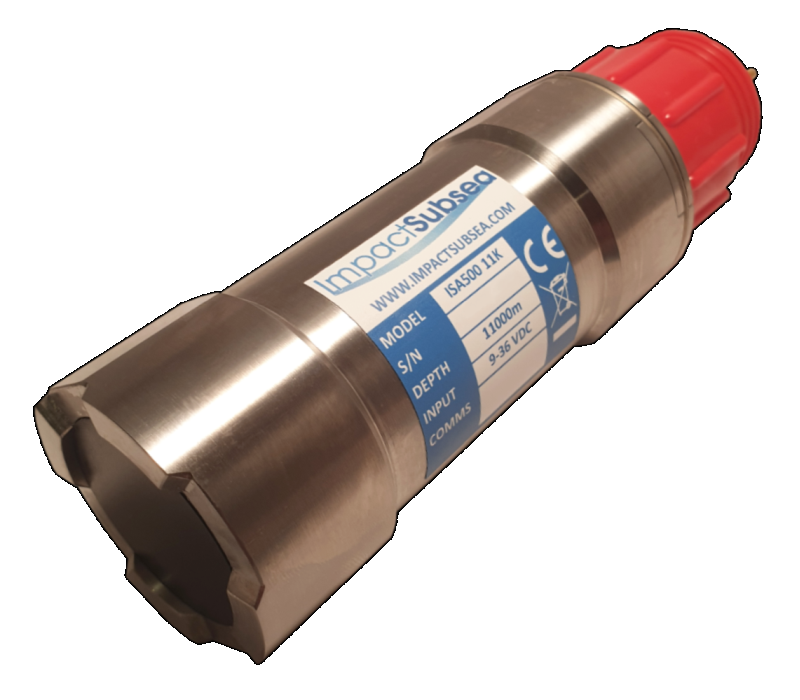

ISA500 11K Website 4

Depth rated to 11,000 meters, the ISA500-11K provides the highest levels of stability, accuracy and range, setting a new standard for deep water altimeters.

Based on the architecture of the ISA500 range of Altimeters, the ISA500-11K has distance measurement capability in excess of 120 meters and proven millimetre accuracy.

With optional integrated Attitude and Heading Reference System (AHRS), the sensor can also provide highly stable Heading, Pitch and Roll readings.

Provided in robust titanium housing and fitted with Subconn BH8M-SS connector as standard, the altimeter is built to withstand the harshest of underwater environments.  In comparison to the existing ISA500 range of Altimeters, the ISA500-11K makes use of a newly designed transducer, housing and endcap. The same core electronics that are used in all ISA500 Altimeters is maintained allowing full software configuration of the Altimeter.

All readings can be displayed in an easy-to-use software interface or output to a third party system; making the ISA500-11K a very simple Altimeter to use in a multitude of applications.  At only 109mm/4.3″ long and 47mm/1.85″ wide the ISA500-11K is an ideal solution for applications where space and weight are critical considerations.

Commenting on the launch, Ben Grant, Managing Director stated: “With continuing missions to explore the depths of the sea; the ISA500-11K provides an excellent option for long range and high accuracy altitude measurements at the deepest of locations”.

Further details of the ISA500-11K sensor can be found here.
