seaView V3 provides a cutting-edge user interface for the setup and operation of Impact Subsea sensors including our ISD4000 Underwater Depth Sensor.

Transcript

Hi! I’m Ben and in this video we’ll be looking at the ISD4000 Underwater Depth Sensor application in seaView V3. When you first run seaView V3 you’ll be presented with this screen here. On the left hand side you have a list of applications within seaView. On the right hand side you have a list of all communication ports on your computer and any network connections.

When you first run seaView, seaView will scan all communication ports and network connections to search for any Impact Subsea sensors. Any sensors detected are then shown in the middle of the screen here under devices. In this example here, an ISS360 sonar has been detected and also an ISD4000 Depth and Temperature sensor.  If you look at the icon for the ISD4000 you can see we’re presented with some additional information such as the serial number of the sensor connected, the firmware version of that sensor and also how it’s connected to seaView. In this example we can see it’s connected via com port 5 and is connected at a baud rate of 115,200 baud.

ISD4000 Underwater Depth Sensor Application main screen

If you double click on the ISD4000 icon you’ll be taken into the main application. Once into the application you’ll find you’ve got depth measured and the depth reading top left hand corner and below the depth reading is the raw pressure reading from the sensor.

We then also have temperature and if you have an ISD4000 with integrated Heading, Pitch and Roll you also have heading pitch and roll and a little 3D model of the sensor all of which update in real time. If we take a sensor if we move it around you can see the Heading changes as it rotates and the Roll and the Pitch change as we move the sensor the little 3D model of the sensor updates in real time just to provide you a kind of ‘at a glance’ indication of how the sensor is sitting.

In the middle of the screen we have a graph which is depth over time, plotted away there.

ISD4000 Underwater Depth Sensor App Setup

If we look at the top left hand side of the screen the first button down is your settings button. If you click on this you’ll be taken into the the main setup page. From here the initial setup page you can enter in the latitude, of your area of operation, it’s useful to enter this as it’ll be taken into account when doing the pressure to depth conversion as it’ll take into account the local gravity in the area you’re working in.

You can apply any depth offsets, any pressure offset, you can tear the sensor immediately. If you click the ‘Tare Now’ and then click the ‘Ok’ button it basically zeros the depth and you can see the depth has been zeroed in the top left hand corner. If we go back into the settings again, you can also apply a filter to the pressure, this is an averaging filter.

Calibration

You can also from this window carry out a pressure calibration and a temperature calibration. To carry out a pressure calibration you’ll need a high accuracy atmospheric pressure sensor combined with a dead weight tester and associated weights. For the temperature calibration you’ll need a number of temperature baths each at a set temperature.

Connection

The next settings window to go into is the ‘Connection’ window. From here you can set the serial communications mode of the sensor which can be RS232, RS485 or RS485 Terminated and you can also set the baud rate required on the sensor together with the word length, parity and number of stop bits.

ISD4000 Underwater Depth Sensor Output string

This next window allows you to set up the output string from the ISD4000. This is the output string for the depth and pressure. There’s a number of standard Impact Subsea strings and also number of strings from other sensors as well. These are all documented fully in the ISD4000 manual.

If there’s a string you require which isn’t present you can use the custom button to either edit a string or add an entirely new ASCII output string to your own configuration. This makes ISD4000 really simple and really easy to integrate with third-party systems.

In the same window you can also set up how many times per second to output the string and you can also set up any interrogation strings you require, tare strings and un-tare strings.

You can set exactly the parameter that you want the ISD4000 to respond to for each of these interrogation commands.

AHRS settings

If you have an ISD4000 with integrated AHRS, providing Heading, Pitch and Roll, you’ll also have AHRS settings and AHRS output. If you click on the AHRS settings tab, from here you can set up everything to do with Heading, Pitch and Roll. You can initially set the orientation so the default is connector facing upwards pressure port facing downwards. We can set it to be inverted or you can set any offsets on the Roll or the Pitch. And this will essentially provide you with an accurate reference point for your Pitch and Roll and Heading readings.

Once installed on the vehicle you can also make any minor adjustments to the Heading, Pitch and Roll values to account for minor inaccuracies in installation. You can also set up a magnetic declination
offset, turn initial mode on and off, calibrate your magnetometers and configure your turns counter from this window.

AHRS output string

If we look at the AHRS output from here you can select a number of Impact Subsea strings or again a number of industry standard strings or like with the Pressure and Depth output string you can also create your own custom string. From here you can either edit one of the standard strings or you can create an entirely new string to suit your application. And again you can select the the rate at which you want the string to be output;  or if you want to interrogate string you can set up a interrogation value for it.

ISD4000 Underwater Depth Sensor Record log file

Once you’ve finished configuring the ISD4000 Underwater Depth Sensor, clicking the green tick ‘Ok’ button will save all the settings to the firmware and they will remain there until the sensor is next connected to seaView and the settings are changed again, regardless of power cycles.

Going back to the main screen. Looking on the left hand side you can record a csv file which will give you all the readings from the ISD4000 Underwater Depth Sensor, saved into a log file, along with a timestamp and in terms of the graph you can clear the graph and you can also set up display options.

ISD4000 Underwater Depth Sensor Display options

You can set what you want to have displayed on screen. For example you could turn off the Temperature, the Pitch, Roll and Heading and just have the Depth and Pressure, a little 3D model of the depth sensor. Or you can turn these back
on, or maybe with the turns counter as well, really just to suit your application setup.

That’s the ISD4000 application in seaView Software V3, if you have any questions regarding this please do not hesitate to contact us at support@impactsubsea.co.uk

Take a look at the ISD4000 Underwater Depth Sensor Product Page: ISD4000 Depth Sensor

Watch seaView Software overviews on our other sensors: YouTube playlist

The ISD4000 Depth & Temperature Sensor is a widely used high accuracy depth and temperature sensor on Remotely Operated and Autonomous Underwater Vehicles.

It can also be used to monitor the depth of any item being deployed underwater with a high level of accuracy and precision.  The optional integrated Attitude and Heading Reference System provides a useful additional sensing capability.

Depth Measurement:

The ISD4000 is equipped with a temperature compensated piezoresistive pressure sensor that is able to sense absolute pressure to 0.01% of Full Scale (FS) accuracy (0.005% full scale option is also optionally available).

To enable the highest level of accuracy for the depth of operation in a particular application; the ISD4000 is available in a number of pressure ranges. 10, 30, 50, 100, 300, 400 and 600 Bar pressure configurations are offered.  As a rule, when working in depths up to 100 meters, a 10 bar sensor should be used. Depths up to 300 meters would necessitate a 30 Bar sensor and so forth.

When calibrated to 0.01%FS accuracy, this enables a pressure accuracy of ±0.001 Bar for the ISD4000 which has a full scale of 10 Bar.  Or ±0.06 Bar for the ISD4000 with a full scale of 600 Bar.

This is the overall accuracy level; the relative accuracy of the sensor may be greater than this value.

The measured pressure is then converted to a depth measurement using an industry standard UNESCO pressure to depth algorithm which also takes into account the local gravity in the area of operation.

The pressure sensor itself is protected by a black acetal end cap.  This end cap provides physical protection of the pressure sensor while also locking in the pressure sensor and temperature probe.  The protective cap can be removed quickly to allow cleaning of the pressure sensor to remove build up of salt or sand.

This also allows the ISD4000 Depth & Temperature Sensor to be connected to a calibration block for pressure calibration or pressure verification without the need to strip the sensor down. Having the pressure sensor close to the exterior of the sensor ensures that no blockages can occur which would result in a stuck pressure/depth reading.

When compared to alternative resonant quartz-based pressure sensors, the temperature compensated piezoresistive pressure sensor has the advantage of longer-term stability. This allows a longer duration between pressure calibrations.

In addition, the pressure sensor itself is physically smaller and more compact, providing enhanced shock and vibration performance.

Temperature Measurement:

The ISD4000 is equipped with a Resistance Temperature Detector (RTD) which provides temperature measurements to ±0.1°C (±0.05°C accuracy is also optionally available).

The temperature probe itself is made of stainless steel to provide excellent thermal transfer properties.  The stainless-steel probe is hollow and the RTD is embedded within this.  This enables a very low latency temperature readings to be provided.

Attitude & Heading Reference System:

The ISD4000 is optionally available with an in-built Attitude and Heading Reference System (AHRS).  This provides Heading, Pitch and Roll as a secondary output.

This also provides a Turns Counter output from the ISD4000.  This allows the rotations about a specific axis to be reported on (Heading, Pitch or Roll).  This can be highly useful for tether or cable management.

Within the ISD4000 there are three gyroscopes, three accelerometers and three magnetometers.  The outputs from these are fused together to provide the AHRS functionality.  The raw data from each of these sensors can also be made available as an output should this be required.

Depth & Temperature Sensor Interfacing:

The ISD4000 Depth & Temperature Sensor comes as standard with both RS232 and RS485 serial interfaces integrated into the sensor.

The sensor can run directly into Impact Subsea’s seaView software or it can output any number of ASCII strings for integration into third party systems.  This includes proprietary Impact Subsea strings but also the ability to emulate any other depth sensor, making the ISD4000 a very simple sensor to retrofit to existing systems.

Software Configuration:

One of the key benefits of the ISD4000 is that all settings are entirely software configurable.  There is never a requirement to open the sensor – all settings can be adjusted using the freely available seaView software.

This allows the latitude of operation to be entered, any depth or pressure offsets, tare functionality to remove the effect of atmospheric pressure etc.

The communications mode, output strings, update rate etc., can all also be configured using the seaView software and then saved to the sensor’s firmware.

The below video provides an overview of the ISD4000 Depth & Temperature Sensor application showing where all the core elements of the user interface are and highlights the settings available on the ISD4000 sensor itself.

Physical Configuration:

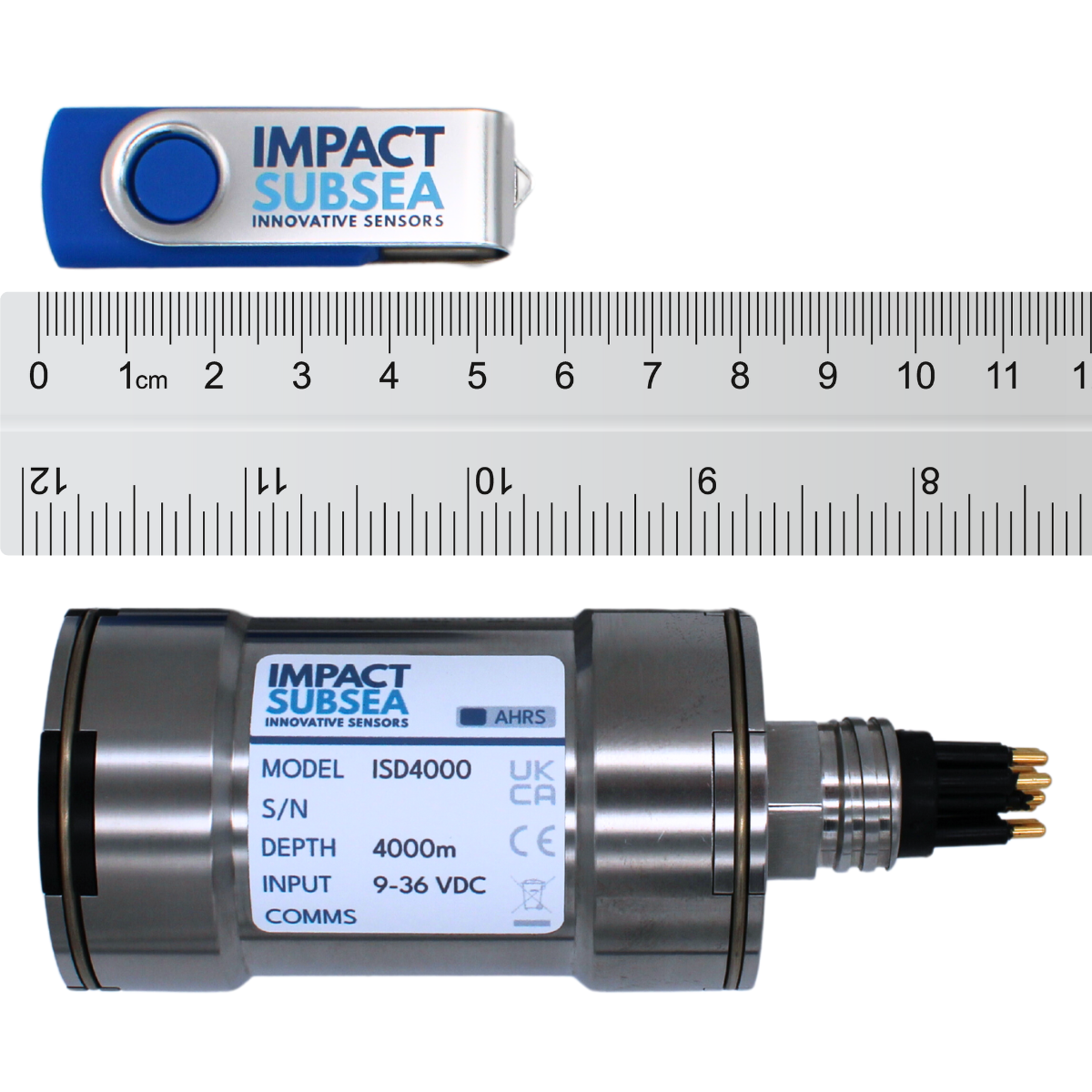

To ensure the ISD4000 Depth & Temperature Sensor can be used in all underwater depth sensing applications, a variety of physical configurations exist. The ISD4000 is available in Titanium or Acetal materials, both with excellent longevity.

Alternative OEM options are also available for direct integration into your own housing if required.

The ISD4000 offers a Depth/Temperature/AHRS sensing capability in a very compact form factor:

The acetal housed ISD4000s are available in 10, 30 & 50 bar configurations. This is due to a 500 meter maximum depth rating of the acetal housing.  The Titanium housed ISD4000 sensors are available in all pressure configurations.

Robustness:

The ISD4000 has been designed and built with the highest levels of longevity and robustness in mind.

As already highlighted, the housing materials used are either Acetal or Titanium, chosen due to their longevity and strength.

The electronics are of commercial grade with all components being low mass to ensure excellent shock and vibration performance. No screws are used within the design, with a snap and lock together methodology being used to ensure no parts can come loose over time.

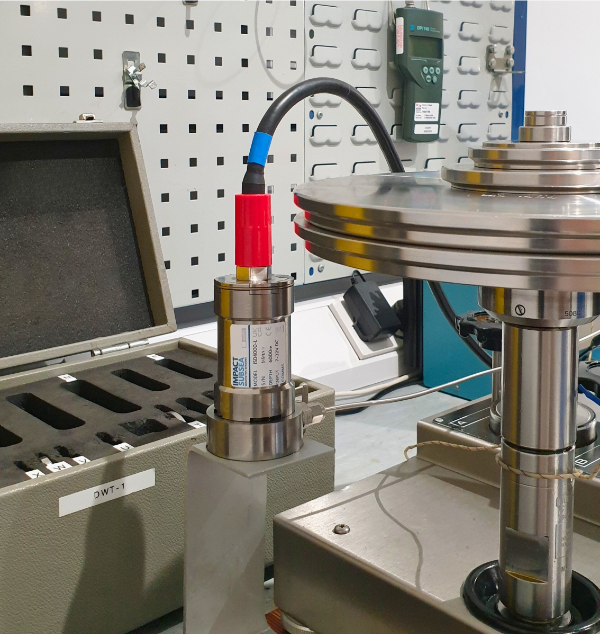

Calibration:

To calibrate the pressure sensor within the ISD4000, this is accomplished through the use of a primary measurement source. This is a Dead Weight Tester complete with weights. A high accuracy atmospheric pressure sensor is also required.

An ISD4000 calibration block is available which allows the simple connection of the ISD4000 pressure sensor directly to the hydraulic pressure output of a dead weight tester:

Within the supplied seaView software is a calibration process which will talk the user through the process.  By default, a five-point cubic interpolation calibration is performed. Five known pressures are provided across the span of the pressure calibration. Pressure points near the maximum and minimum values are used together with uniformly distributed pressures across the range.

Overall:

The ISD4000 is a highly compact survey grade Depth & Temperature sensor with optional integrated Attitude and Heading Reference System.

The ability to configure all aspects of the sensor in software allows quick configuration and ease of integration into any new or existing system.

The robust design ensures that the ISD4000 is suitable for the most challenging of underwater environments.

The latest ISD4000 Depth & Temperature Sensor datasheet, manual, 3D model and further technical information can be found on the ISD4000 product page.

If you would like to discuss the ISD4000 Depth & Temperature Sensor in more detail and how it can be used in your underwater application, please drop us an email at support@impactsubsea.co.uk

Listen to Alana & Andrew’s new audio overview highlighting the ISD4000 pressure sensor’s key benefits, including high-accuracy piezo-resistive technology, long-term stability and easy software configuration.

Like what you hear? Take a look at the ISD4000 Page.

Transcript – Underwater Pressure Sensor

Welcome everyone to the deep dive. Today we’re plunging into some pretty cool underwater tech. We’re looking at the ISD4000 depth and temperature sensor. Now, if you’re working with ROVs, or AUVs, or really anything you deploy deep underwater, you know how tough it is to get good data.

So, our mission today, break down what makes this sensor special. Exactly. I mean, the underwater world, it’s incredibly demanding. You’ve got immense pressure, changing conditions, getting accurate data consistently over the long haul. That’s not just nice. It’s it’s absolutely critical for science, for industry, everything. And that’s where things like the ISD4000 come in. They tackle those core challenges, right?

So, tackling challenges. Where does the ISD4000 really make its mark first? Let’s talk accuracy. Precision you can trust. What’s the secret sauce there? Okay. Yeah. The core of it is this temperature compensated piezo-resistive pressure sensor. You get this fantastic accuracy typically 0.01% of full scale. Plus, there’s an option for even tighter accuracy. 0.005%. Really impressive stuff. 0.01%. Wow. And you can even get 0.005%. That’s incredible detail.

But what about just surviving down there? The physical stress. How is it built for demanding environments? Yeah, good question. It’s really robust, but also compact design. You can get it in either titanium or acetal. strong materials chosen specifically to handle shock, vibration, you know, the general harshness. It’s basically designed to be deployed and just work for years potentially. Really tough. Tough is good.

Okay, so depth, temperature, durability, check, check, check. But you mentioned options earlier. It gets even more interesting, right? It does. There’s an optional integrated AHRS. That’s an Attitude and Heading Reference System. This really boosts your positional awareness massively. It gives you heading, pitch, roll data, so you know exactly how the sensor and whatever it’s attached to is oriented.

Think about an ROV needing to be perfectly level for a scan or knowing its exact turn rate. And it even has a turns counter. Super useful for things like mapping survey grids and AHRS built in. So, it’s not just telling you where you are vertically, but how you’re oriented. Like giving the vehicle senses. Does that make things easier for the pilot? Maybe. Less guess work. That’s a great way to think about it. Yeah.

Which kind of leads us to the user side of things. How easy is it to actually use? Right. The setup and integration. Well, that’s another strong point. Easy configuration, seamless integration. Basically, all the settings fully software configurable.

You use their free seaView software. And the key thing here, you don’t need to open the sensor housing at all. Adjust parameters, set things up, all through the software connection. It’s faster, safer, reduces risk. Big convenience factor. No opening the case. Yeah, that’s huge, especially in the field.

Okay, so let’s sort of wrap this up for everyone listening. What we’re seeing with the ISD4000 is this potent mix, high precision, real durability and it’s actually user-friendly built for those critical underwater tasks.

And zooming out just a bit, you know, technology like this, it’s fundamental. It lets us understand these incredibly challenging aquatic environments better, operate more safely, whether it’s, you know, deep sea research or inspecting infrastructure. It really pushes what we can actually do down there. It really does.

So, here’s something to think about. What really strikes you about having a single device that delivers this level of precision and toughness, plus advanced navigation data like heading and roll, all configurable without ever cracking it open. Pretty powerful packages.

2D Magnetic Calibration

This video shows how to conduct a 2D magnetic heading calibration on Impact Subsea sensors with AHRS.

This is a useful calibration procedure for the ISA500, ISD4000 or ISM3D when mounted to a Work Class ROV or other large underwater item where the full 3D calibration is unable to be performed.

The 2D calibration allows the heading to be calibrated by simply rotating the ROV 360 degrees.

Download seaView software here: https://www.impactsubsea.co.uk/seaview-v3/

You can also drop us an email at support@impactsubsea.co.uk and we’ll answer any technical questions that you have.

► OUR PRODUCTS ◄

► SUBSCRIBE ◄

► LETS CONNECT: ◄

👉 LinkedIn

👉 Twitter

👉 Facebook

👉 Instagram

► GET IN TOUCH ◄

EMAIL: info@impactsubsea.co.uk

PHONE: +44 (0)1224 460 850

Monday – Friday, 9AM – 5PM GMT

Inversion Reset V3 – Transcript

Hi, I’m Ben Grant, Managing Director of Impact Subsea.

In this video, we’re going to show you how to set your Impact Subsea sensor to a known communications protocol and baud rate. In this example we’ll use the ISA500 altimeter as shown here, however the same process works for any Impact Subsea sensor.

To set your sensor to a known communications protocol, have the sensor on a bench with the connector pointing upwards.

Take your communications and power cable and connect it to the sensor. Once connected and once power is supplied, you want to rotate the sensor three times within the first 10 seconds. That will set the sensor to RS232 9600 baud.

If you have a sensor with V3 firmware or newer if you continue the rotations beyond three and go up to a minimum of six rotations, the sensor will be set to RS485 9600 baud at which point you can connect through your serial interface into your computer and find the sensor within the seaView software.

Once you’re into the seaView software you can configure the sensor to have any permanent communications protocol and baud rate that you require.

► OUR PRODUCTS ◄

► SUBSCRIBE ◄

► LETS CONNECT: ◄

👉 LinkedIn

👉 Twitter

👉 Facebook

👉 Instagram

► GET IN TOUCH ◄

EMAIL: info@impactsubsea.co.uk

PHONE: +44 (0)1224 460 850

Monday – Friday, 9AM – 5PM GMT

Can I run multiple sensors together up one single twisted pair? – Transcript

Something else which you can do with our sensors is if you run them over RS485 comms, we can do multi drop so you can run multiple sensors up one single twisted pair and seaView will automatically interrogate each one into the data, live in real time.

This can be quite useful if you have limited twisted pairs of data channels with sensors to connect over.

I think that’s answered most of the kind of common questions we get on the ISD4000 AUV / ROV Depth Sensors but if you have any more questions, at any time, feel free to drop us an email at info@impactsubsea.co.uk or visit our website where there’s a wealth of technical information available there.

We hope that helps answer your questions on our depth sensors. If you want any more information on the ISD4000 you’ll find the latest data sheet, manuals, demonstration videos and more technical information on our ISD4000 product Page

Or you can drop us an email at support@impactsubsea.co.uk we’ll answer any technical questions that you have.

► OUR PRODUCTS ◄

► SUBSCRIBE ◄

► LETS CONNECT: ◄

👉 LinkedIn

👉 Twitter

👉 Facebook

👉 Instagram

Transcript

Another question we sometimes get asked is ‘Can I run the ISD4000 alongside other sensors?’ We provide software called seaView the latest generation is V3, seaViewV3 and within seaViewV3 you have an ISD4000 application which allows you to configure the sensor, calibrate the sensor, view all the data from the sensor and log all the data etc.

It gives you a live platform so you can either use that as your one display and configuration software or you can use it just to set the sensor up to output the correct data format, to integrate it into a third-party system.

If you’re running into seaView and you’ve got the ISD4000 app you can also run it alongside our other sensors. You can run the ISA500 altimeter, the ISM3D ahrs sensor, the ISS360 sonar, you can run them all on one screen, all of these are coming in live, all data being logged so it’s one single user interface with a lot of data being shown.

We hope that helps answer your question. If you want any more information on the ISD4000 you’ll find the latest data sheet, manuals, demonstration videos and more technical information on our ISD4000 product Page or you can drop us an email at support@impactsubsea.co.uk we’ll answer any technical questions that you have.

► OUR PRODUCTS ◄

► SUBSCRIBE ◄

► LETS CONNECT: ◄

👉 LinkedIn

👉 Twitter

👉 Facebook

👉 Instagram

Does the Depth Sensor [with AHRS] have immunity against temporary magnetic interference? – Transcript

Sometimes we’ll get asked about temporary, magnetic interference when working around steel structures. For example; how will that affect the heading? In terms of magnetics any steel structures won’t affect the pitch and roll at all but a prolonged exposure to a magnetic source will affect the heading. Within the ISD4000 Depth Sensor it’s got three accelerometers, three gyroscopes and three magnetometers. One of each in the kind of X Y and Z planes.

These all fuse together and an output of that fusion algorithm is heading, pitch and roll. The heading is based on magnetic North so when it first powers up the magnetometers find where North is and heading is aligned to that and the gyros and accelerometers help stabilise that heading so if you have a temporary magnetic interference and maybe come up close to a pipeline that’ll affect the magnetometers but the gyroscopes and accelerometers don’t register any change.

They hold the original heading. If you sit there for a long time it will slowly drift round but you have a limited amount of protection from a temporary magnetic interference. If you require heading pitch and roll with a higher level of immunity for magnetic effects then we have our ISM3D heading pitch and roll sensor which is based on a higher grade accelerometers and gyroscopes, it’s worth checking out.

We hope that helps answer your question; Does the Depth Sensor [with AHRS] have immunity against temporary magnetic interference? If you want any more information on the ISD4000 Depth Sensor you’ll find the latest data sheet, manuals, demonstration videos and more technical information on our ISD4000 product Page

or you can drop us an email at support@impactsubsea.co.uk we’ll answer any technical questions that you have.

► OUR PRODUCTS ◄

► SUBSCRIBE ◄

► LETS CONNECT: ◄

👉 LinkedIn

👉 Twitter

👉 Facebook

👉 Instagram

Can I find out more about depth sensor AHRS? – Transcript

I’m just looking at some other questions that we sometimes get asked.

One question that sometimes comes up is with regards to the ahrs so the attitude and heading reference system.

So within the ISD4000 you always get pressure, depth and temperature readings but you also optionally get attitude, heading reference system and this will provide you with heading, pitch and roll.

Pitch and roll to within 0.2 degrees and heading to within 1 degree of magnetic North.

We hope that helps answer your questions on depth sensor AHRS. If you want any more information on the ISD4000 you’ll find the latest data sheet, manuals, demonstration videos and more technical information on our ISD4000 product Page

or you can drop us an email at support@impactsubsea.co.uk we’ll answer any technical questions that you have.

► OUR PRODUCTS ◄

► SUBSCRIBE ◄

► LETS CONNECT: ◄

👉 LinkedIn

👉 Twitter

👉 Facebook

👉 Instagram

ISD4000 – How do I get comms quickly? – Transcript

Just had a question come through here.

So the question that has been posted is; I’ve got ISD4000 AUV / ROV Depth Sensors back from a customer and they don’t know how they have configured it. How do I get comms quickly?

So this is a good question and so usually when we send out sensors we’ve got the sensor label there and that gives you details of the sensor type, the serial number and depth rating etc. Once dispatched from Impact Subsea we also state the communications on there.

If it’s RS232 or RS485 and also the baud rate; if it’s 9600 etc. Sometimes if it’s been out offshore, on a customer deployment and the sensor then comes back to you and possibly it’s reconfigured while it’s offshore and what it says on the label may not actually be how the sensor is configured.

We’ve introduced a nice, simple way to always get comms. So we get the sensor back, if you don’t know how it’s been configured take the sensor, put it on a desk with the connector pointing upwards, pressure transducer pointing downwards.

Connect the cable and apply power then within the first 10 seconds of applying power you want to invert the sensor three times. Literally just turn it upside down like that. Three times and it’ll default the sensor to RS232 9600 baud and allow you to quickly get communications through a RS232 serial interface.

If you don’t have a serial interface of RS232 serial interface. If you keep inverting the sensor six times within that first 10 seconds from power on window it’ll default to RS485 9600. So you’ve got a quick way to get it to set to RS232 comms or RS485 comms.

These are both just temporary changes in the communications as soon as you supply power it’ll go back to how it’s saved but the reset procedure allows you to get comms, go into the settings and then reconfigure the sensor to have whatever communications you require.

How do I get comms quickly? – This is just one question we hope has been answered for you, if you have more please watch the full film here.
