ISA500: Precision Distance Measurement

  • 120+ Meter Range
  • Millimeter Accuracy
  • Optional Heading, Pitch & Roll

  • Software to View, Log & Configure
  • Digital & Analogue Interfaces
  • Robust & Compact Housing
  • Low Power Consumption
  • Emulate Any Device
  • Range of Variants
  • Multi Echo Output

Impact Subsea ISA500 ROV & AUV Altimeter

Provides Altitude readings from 120 meters above the seabed.  Also provides Heading, Pitch & Roll.  Can emulate any other device – making integration into any ROV or AUV very easy.
Measure distance to a target underwater.  Using the multi-echo capability, measure the distance to and between multiple targets.
Monitor the height off the seabed together with the Pitch, Roll and Heading of the equipment.  Provides a clear understanding of equipment position and attitude.
Using the seaView software, conduct single beam echo sounder survey and monitor the build up and movement of sediment.
Monitor Altitude above the seabed and also the Pitch, Roll and Heading of the Magnetometer or Towfish.
Using the seaView software, conduct full single beam echo sounder surveys and automatically generate a 3D subsea terrain map.
The ISA500 provides the ideal Flooded Member Detection sensor.  Combined with the FMD application in seaView – all that is required to detect underwater flooded members is provided.  Learn more about the ISA500 & FMD system here.
Continue to ISA500 Page

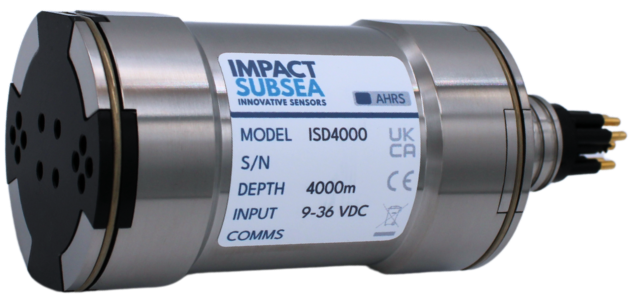

ISD4000: Precision Depth and Temperature

  • 0.01% FS Depth Accuracy
  • 0.01°C Temperature Accuracy
  • Integrated Heading, Pitch & Roll
  • Software to View, Log & Configure
  • Robust & Compact Housing
  • Emulate Any Device
  • Digital Interfaces
  • Survey Grade

Impact Subsea ISD4000 ROV & AUV Depth Sensor

Provides Depth readings to 0.01%FS,  Ideal for survey operations.  The high update rate (up to 100Hz) is highly applicable for use with auto depth systems.  Temperature is provided along with Heading, Pitch & Roll – ideal for basic navigation.
Monitor the depth during deployment together with the Pitch, Roll and Heading of the equipment.  Provides a clear understanding of equipment position and attitude.
Using multiple ISD4000 units, monitor the deflection of a subsea structure.
Depth & Temperature are provided to survey grade – ideal for any survey.
The integrated gyros, accelerometers & magnetometers provide highly stable Pitch, Roll & Heading in addition to Depth & Temperature.
Continue to ISD4000 Page

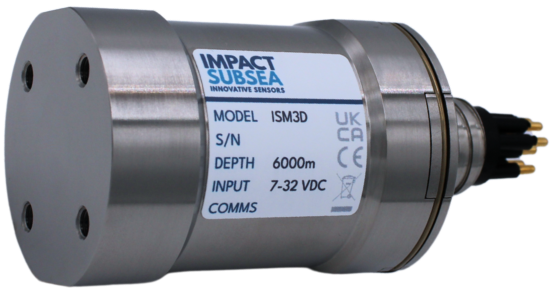

ISM3D: Precision Heading, Pitch & Roll

  • ±0.5° Heading Accuracy

  • ±0.05° Pitch & Roll Accuracy

  • Software to View, Log & Configure

  • Depth Rated to 6,000 Meters

  • Robust & Compact Housing

  • In-Field Firmware Updates

  • Low Power Consumption

  • Emulate Any Device

  • Digital Interfaces

ISM3D ROV & AUV Attitude &Heading Reference System

Provides Heading to ±0.5° of local Magnetic North with Pitch and Roll to ±0.05° accuracy.

The high update rate (up to 250Hz) is highly applicable for use with auto heading and vehicle stabilisation systems.

For optimal performance, a hard and soft iron calibration can be performed on the unit once installed on the ROV or AUV. This ensures that a consistently accurate heading is provided at all times.

In areas where a large amount of steel of other magnetic disturber is present, the unit can be set to operate using the Angular Rate Gyroscopes and Accerometers, without input from the Magnetometer.  The low drift rate of the advanced MEMS based Gyroscopes enables navigation to be conducted in areas where previously only a fibre or ring laser diode based heading sensor would suffice.

Heading to ±0.5° of local Magnetic North with Pitch and Roll to ±0.05° accuracy.

Provides a clear understanding of equipment orientation and attitude.

Heading to ±0.5° of local Magnetic North with Pitch and Roll to ±0.05° accuracy.

Ideal for underwater survey work.

Heading to ±0.5° of local Magnetic North with Pitch and Roll to ±0.05° accuracy.

Ideal for monitoring the motion of any underwater vehicle or platform.

CONTINUE TO ISM3D PAGE

ISP1 & ISP2: Subsea Pressure Housings

  • Two Diameter Options
  • Optical Viewport Option
  • Various Depth Ratings Available
  • Custom Connector Configurations
  • Optional Integrated Depth Sensor
  • Optional Integrated AHRS
  • Lightweight

ISP2 & ISP1 Subsea Pressure Housings

The viewport is ideal for indication LEDs.  Significant space is provided for batteries, electronics etc.  Connectors can be used for data transfer.
Create you own subsea camera – chose the camera of choice for your application.  Room for camera electronics, batteries, logger etc.
Create your own instrument package and house in the ISP1.  Viewport provides capability for a camera, led display or visual readout.
Continue to ISP1 & ISP2 Page

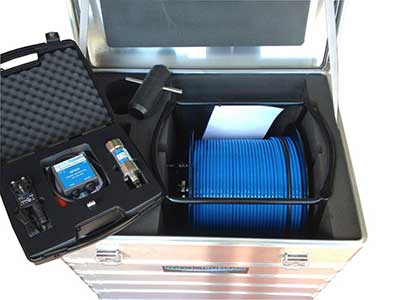

ISFMD: Flooded Member Detection

  • Acoustic FMD System

  • Visualise Acoustic Returns

  • Automatic Report Generation

  • Powerful & Intuitive Software

  • ROV or Diver Operated

  • Integrated AHRS

  • Titanium Probe

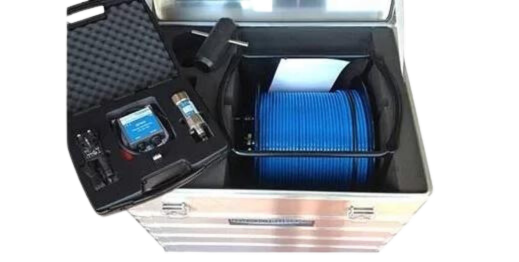

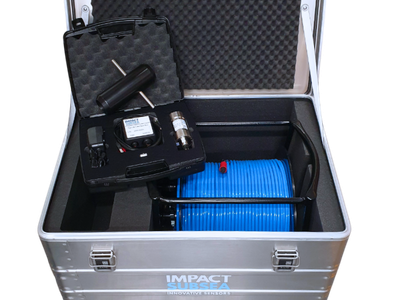

ISFMD Flooded Member Detection System

Continue to ISFMD Page

seaView: Software for all Impact Subsea Sensors

  • View Live Data
  • Log Data to CSV File
  • Connect to Multiple Sensors
  • Configure & Calibrate Sensors
  • Conduct Hydrographic Surveys
  • Conduct Flooded Member Detection

software

View and log data from the ISA500.  Also configure the ISA500 and conduct a heading calibration.
View and log data from the ISD4000.  Also configure the ISD4000 and conduct pressure, temperature and heading calibrations.

View and log data from the ISM3D.  Also configure the ISM3D and conduct a heading calibration.

Use the ISA500 as a single beam echo sounder.  Feed in GPS and gather data in 2D and convert to a 3D subsea terrain map automatically.  A highly simple and effective single beam echo sounder survey solution.
The Flooded Member Detection application provides all that is required to conduct an underwater Flooded Member Survey, using the ISA500 as a highly accurate and precise sensor probe. Learn more about the FMD system here.
Continue to seaView Page
