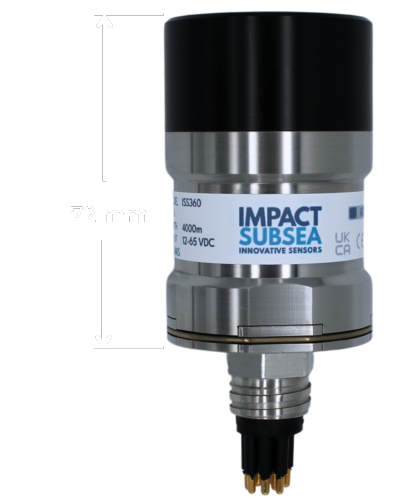

The ISS360 range of Imaging Sonars provide excellent image clarity with a long range capability.
The ISS360 is the world’s most compact imaging sonar and provides an ideal solution for ROV & AUV navigation, obstacle avoidance and target identification for the smallest to the largest underwater vehicles. For operations requiring a higher angular resolution and range capability the ISS360HD is an ideal choice.
Both the ISS360 and ISS360HD utilise a Titanium housing to enable many years of operation. The ISS360 is available in depth ratings of 4,000 meters / 13,123 feet or 6,000 meters / 19,658 feet. The ISS360HD is depth rated to 6,000 meters / 19,658 feet as standard.
All sonars can be provided with integrated gyroscopes and accelerometers, providing stable Pitch and Roll readings.
All ISS360 imaging sonars utilise a broadband composite transducer coupled with CHIRP acoustics to provide excellent image clarity and range capability.
The sonar provides a full 360° field of vision produced by a mechanically scanned transducer. The transducer utilises inductive coupling to the sonar electronics which enables operation without the use of slip rings. This ensures excellent longevity in operation without the need to periodically return for slip ring replacement.

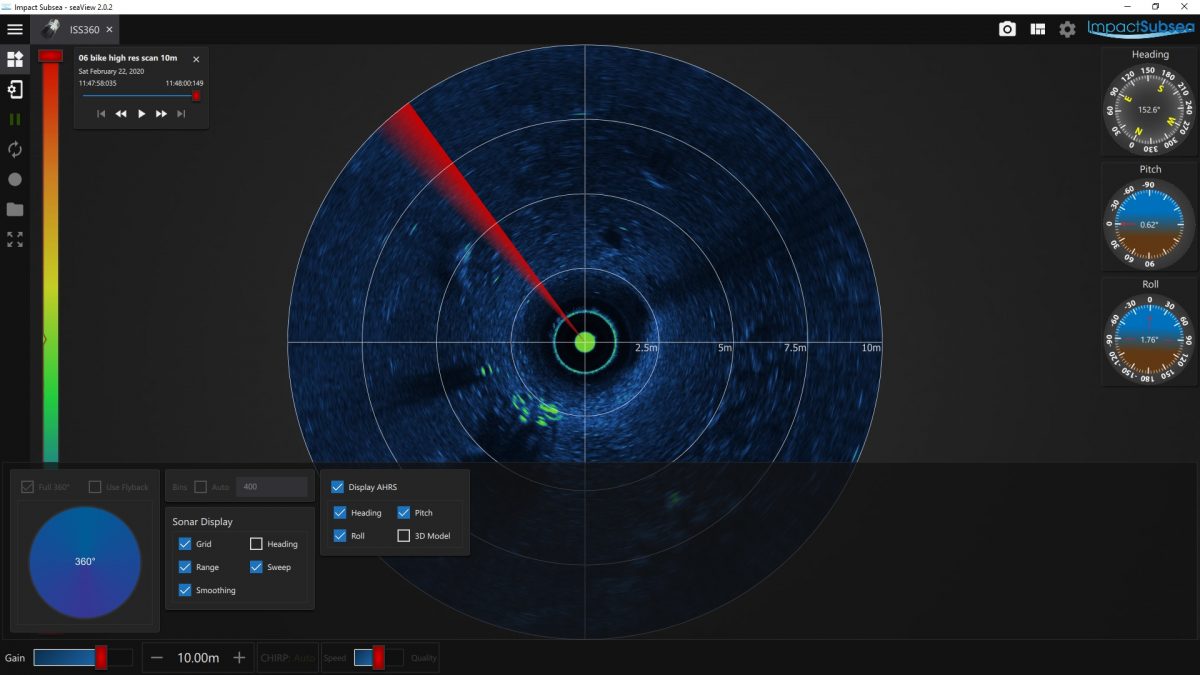

All sonar settings are fully software configurable using the seaView software. The seaView sonar application is highly intuitive to use for the operator, ensuring range, resolution and other settings can quickly and easily be adjusted.
Alternatively a software development kit is available for third party integration and interface development.
The use of CHIRP (Compressed High Intensity Radar Pulse) acoustics enables the ISS360 range of Sonars to produce imagery with exceptional clarity.
The ISS360 sonar can be operated at any frequency from 600 to 900kHz. By default a 300kHz CHIRP (600 to 900kHz) is used for shorter ranges, with the bandwidth decreasing as range is extended.
The CHIRP frequency can be adjusted as required or a monotonic signalling scheme can be chosen.
The use of CHIRP acoustic signalling enables a significant increase in range resolution while maintaining an excellent range capability.

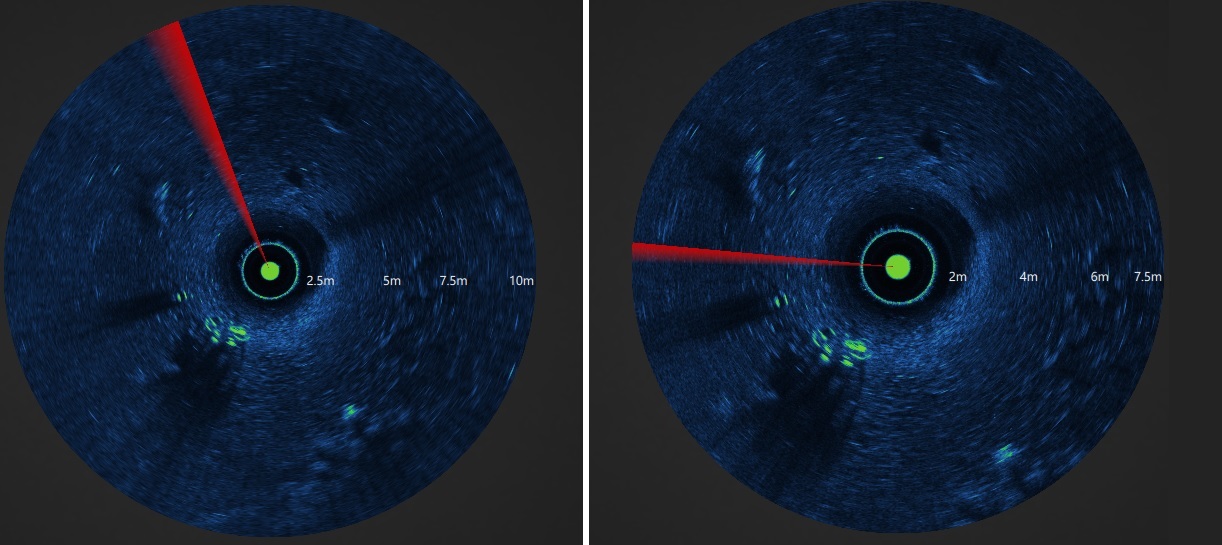

In the example above, the ISS360 Sonar image on the left is created using a single frequency pulse (Monotonic Acoustics). The ISS360 Sonar image on the right uses the same settings, but instead of a single frequency pulse, a 100kHz bandwidth CHIRP pulse is used.
Optionally available within all ISS360 Sonars is a Pitch & Roll sensing capability.
The Pitch and Roll sensing is based on Micro-Electrical-Mechanical-System (MEMS) technology.
Within the ISS360 there are three MEMS based Gyros, Accelerometers & Magnetometers. The outputs from each of these MEMS devices are fused together, providing highly stable Pitch & Roll.

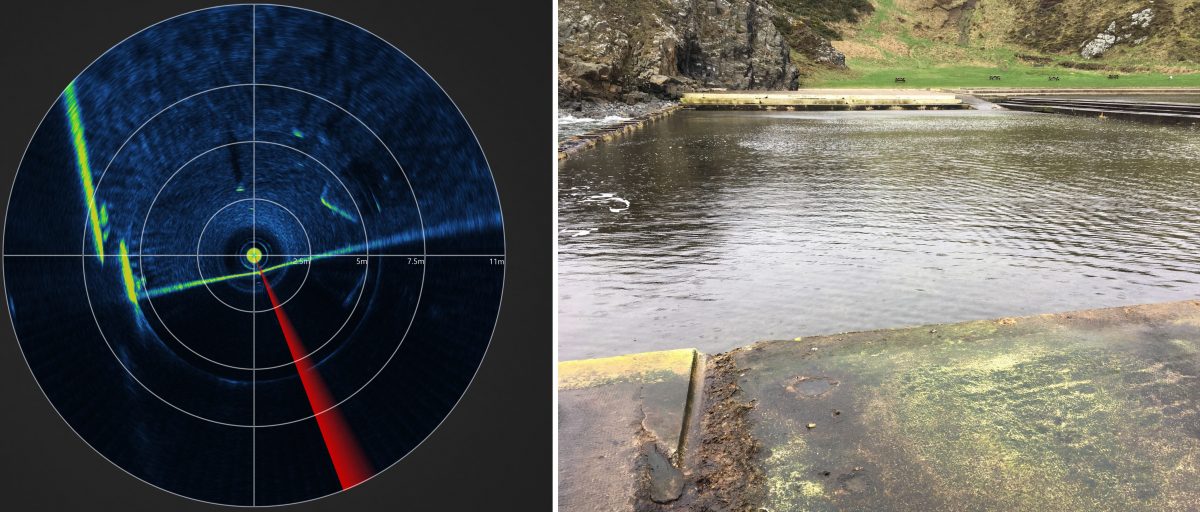

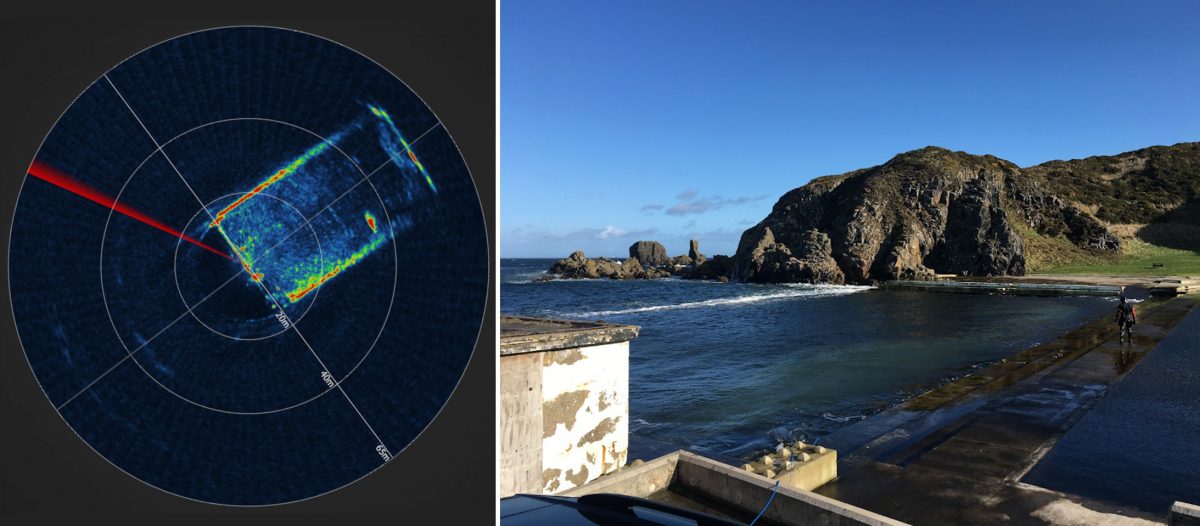

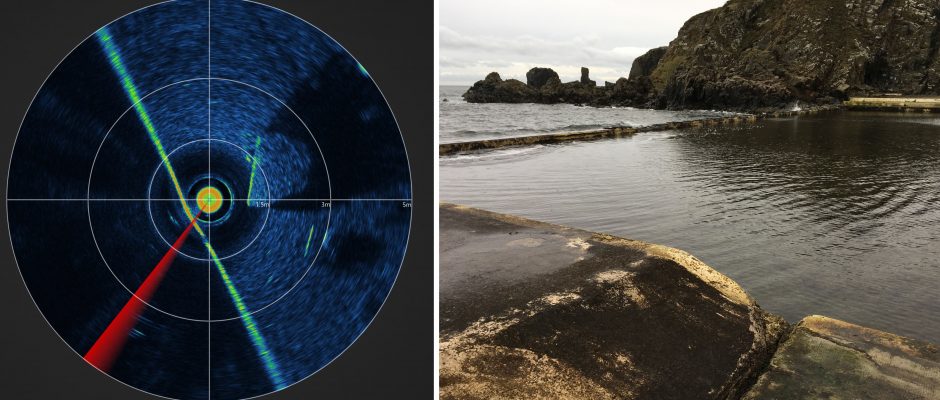

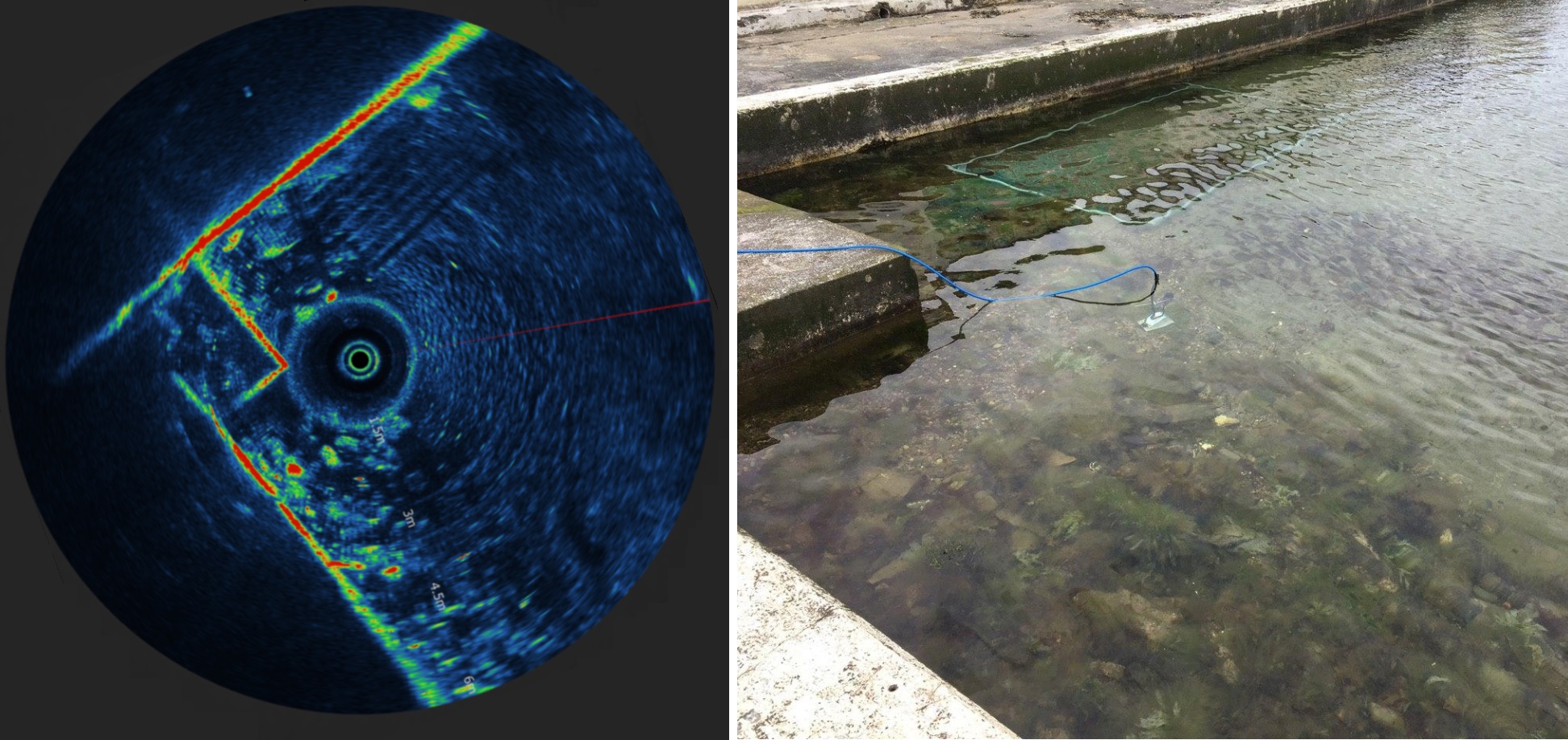

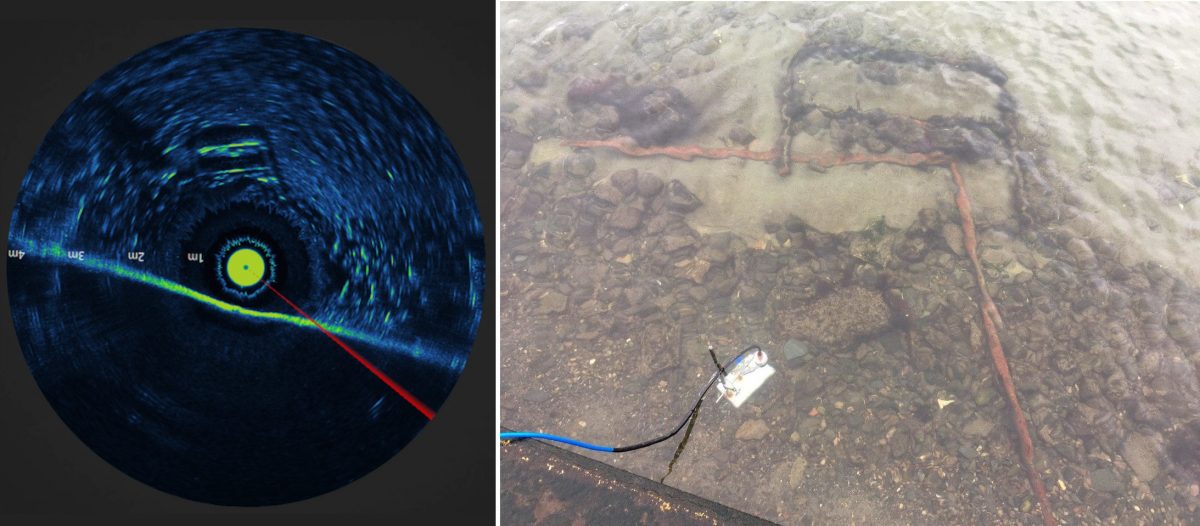

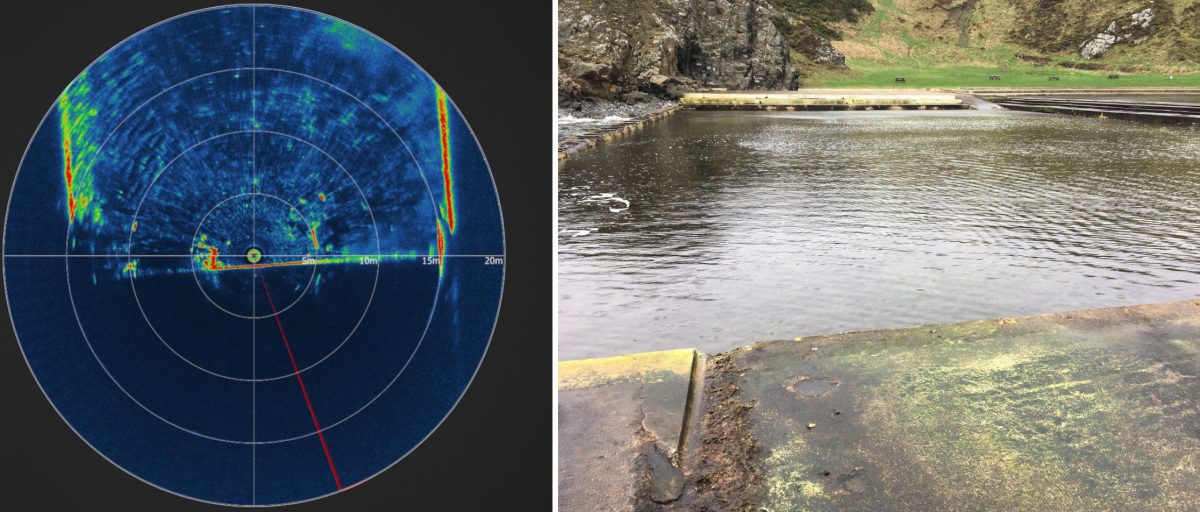

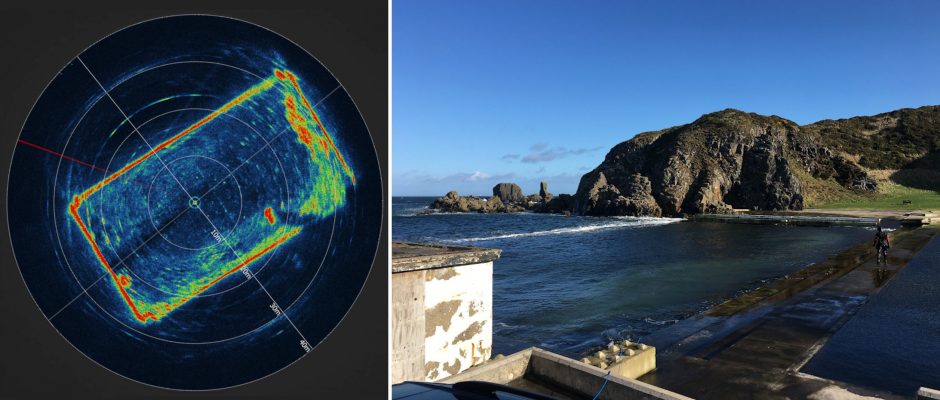

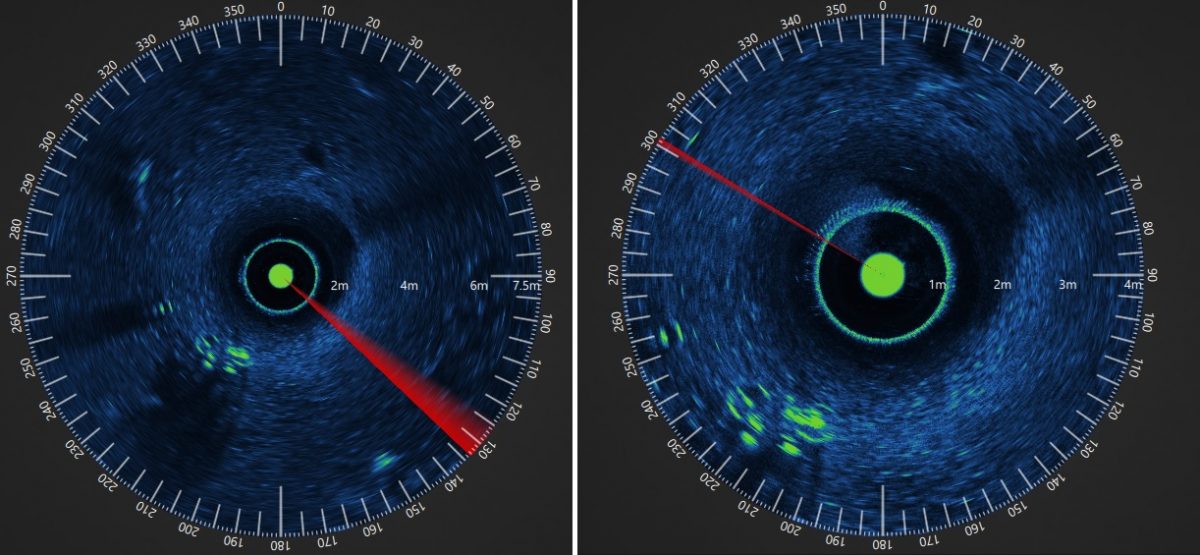

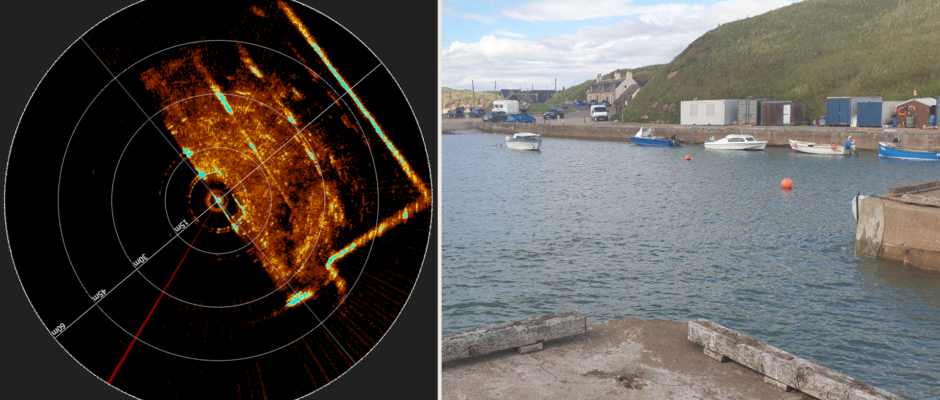

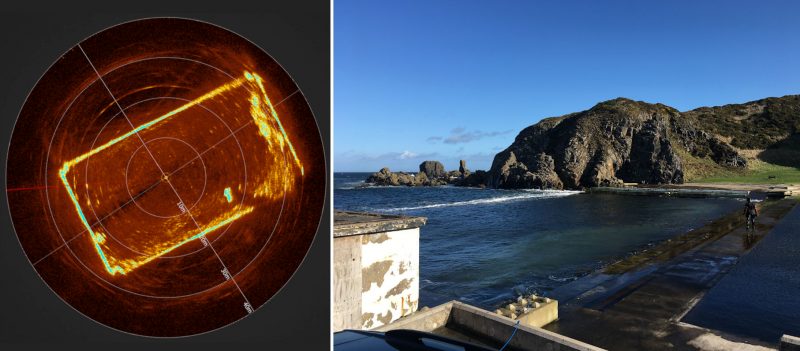

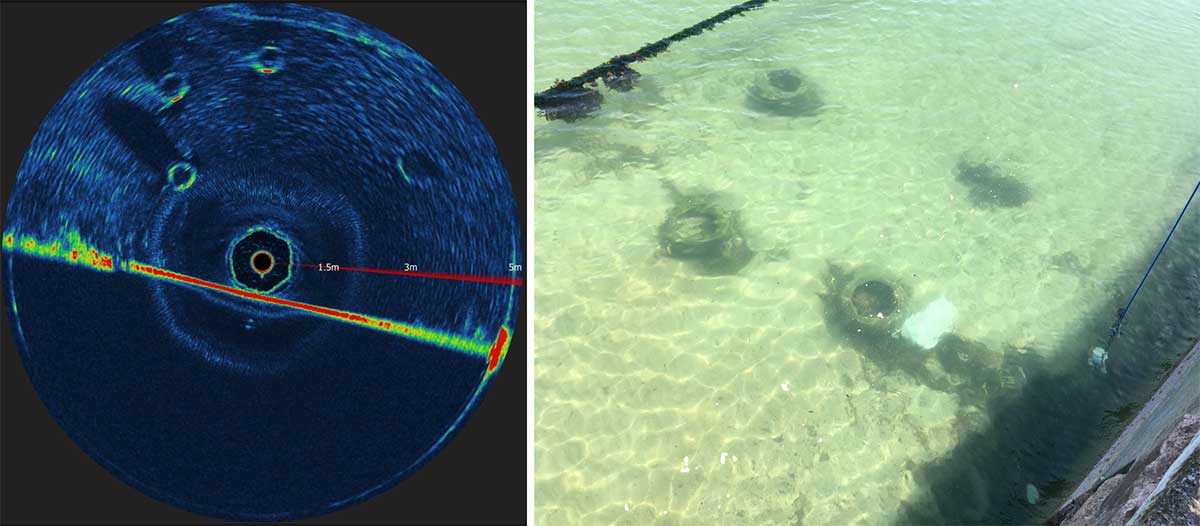

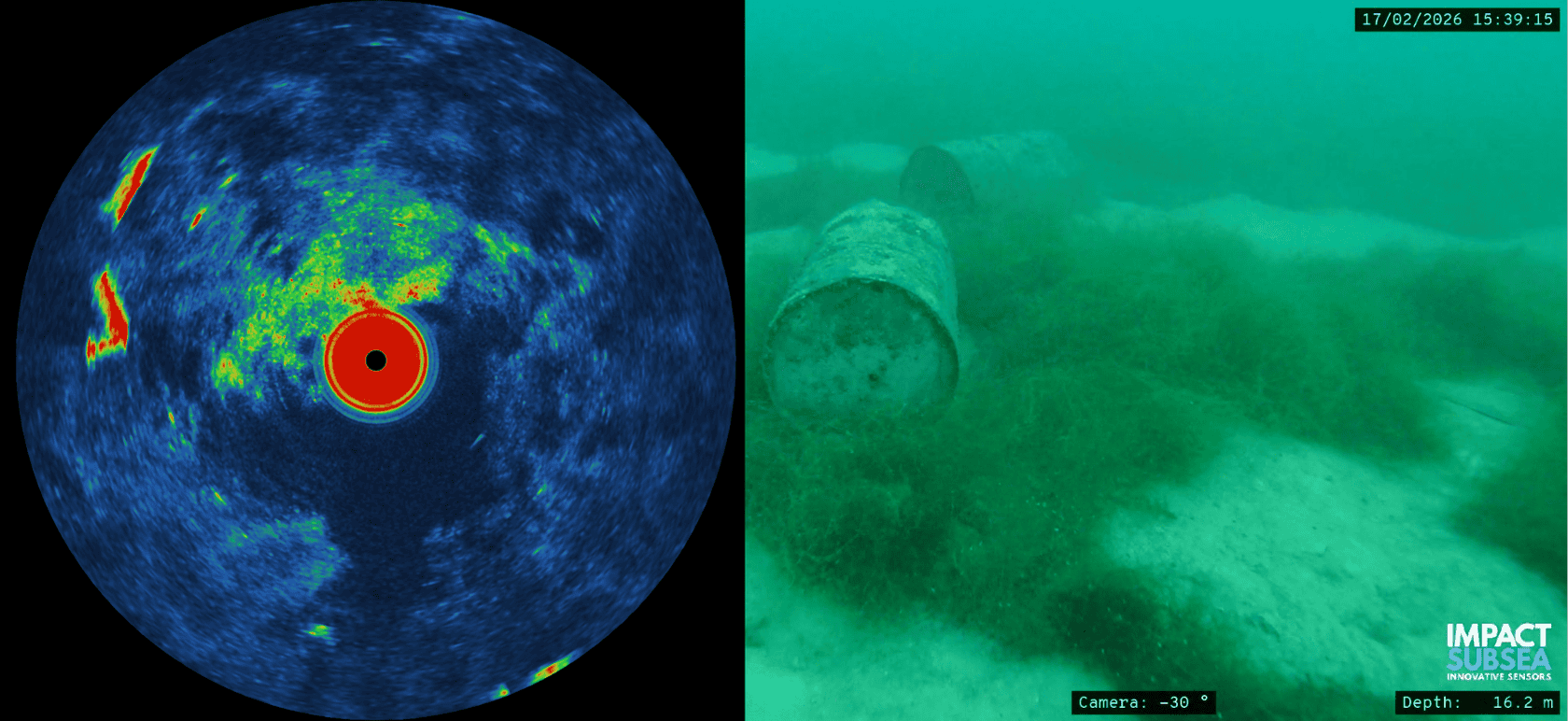

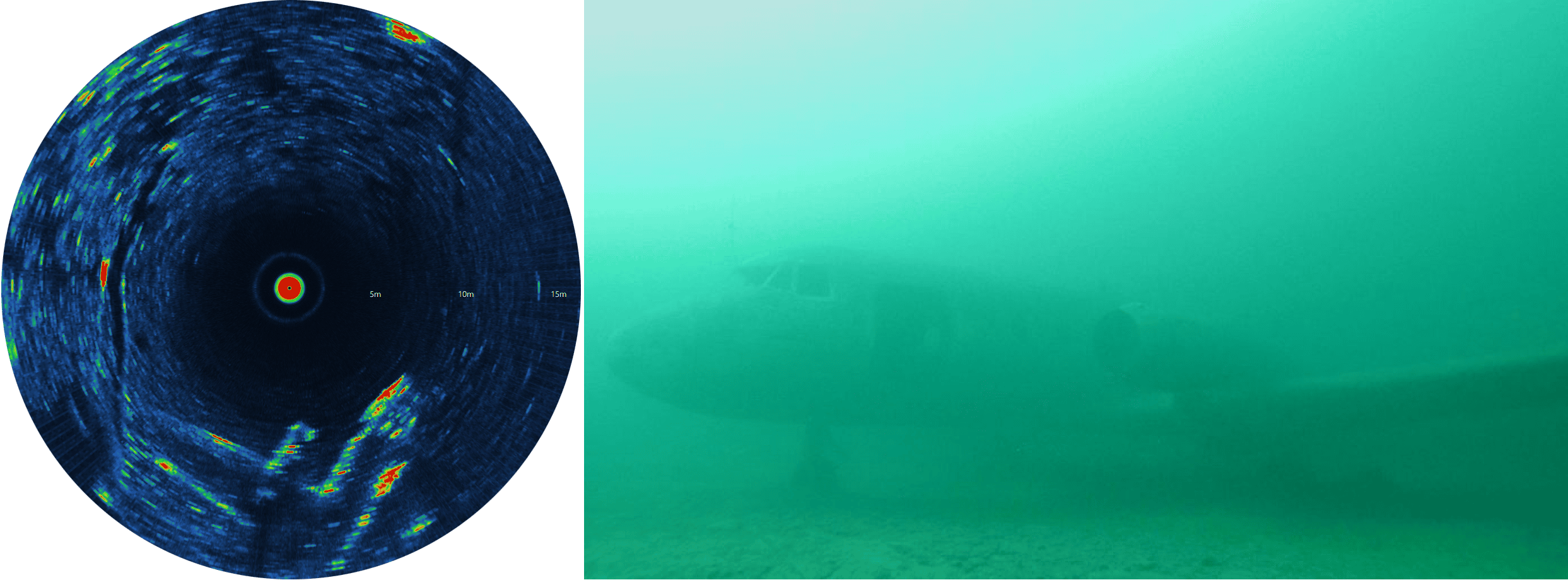

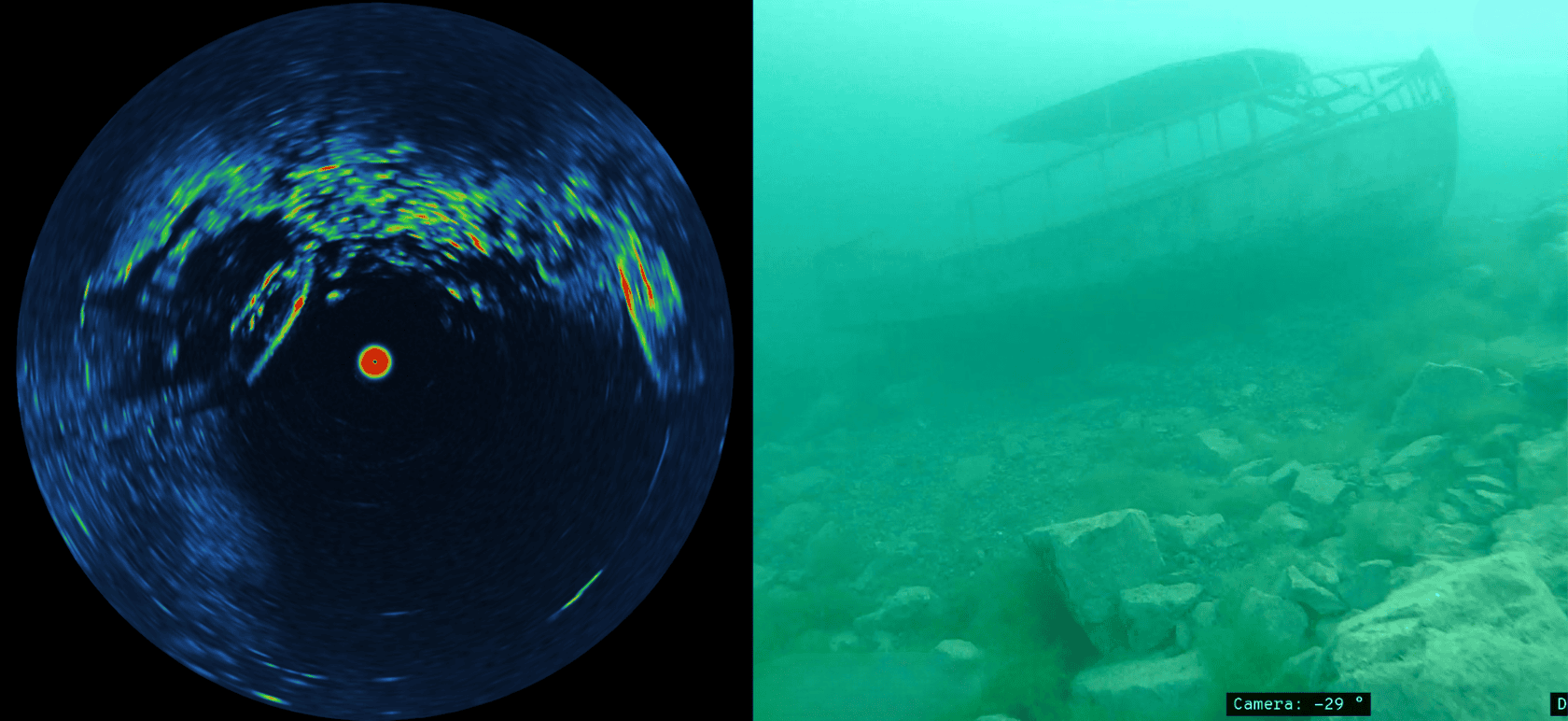

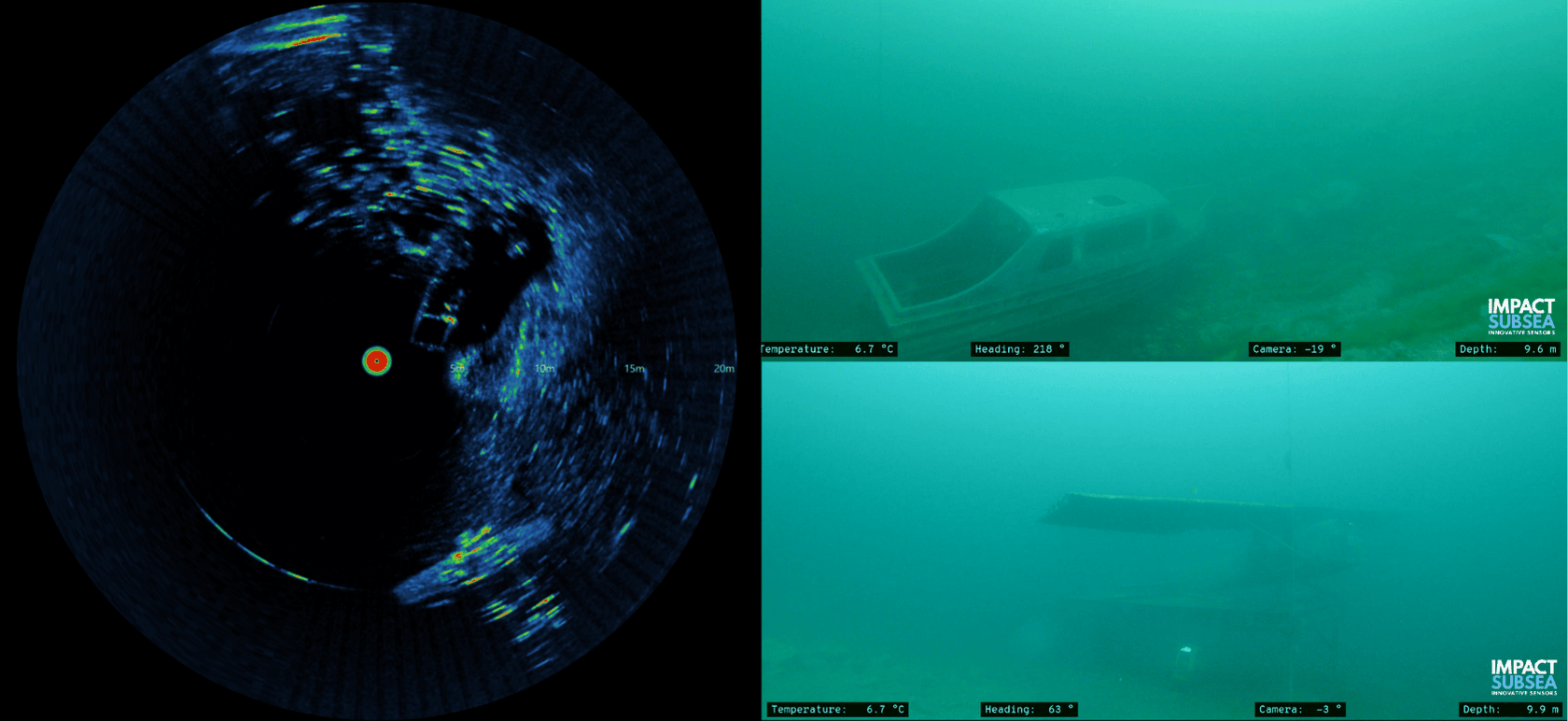

Below are a sample of images produced by the ISS360 Sonar at different ranges and using various colour pallets.
Click on image to view in detail:
Provides 360° vision around the vehicle up to a distance of 90 meters/295 feet away (or 100 meters away if using the ISS360HD).
Can provide a sector scan with exceptionally fast update rate (when using Ethernet comms, update rates can be up to 6 times faster than conventional serial only scanning sonar systems).
With a wide band CHIRP signalling excellent range resolution is provided for image clarity.
Depth rated to 4,000m in Titanium enables the ISS360 to be used on the smallest observation class vehicles to the largest workclass vehicles. The 6,000m / 19,685 feet rated version also provides a cost effective sonar for deep water operations.
Also optionally able to provide Pitch and Roll as an additional navigation aid.
Provides 360° vision around the vehicle up to a distance of 90 meters/295 feet away (or 100 meters away if using the ISS360HD).
With a wide band CHIRP signalling excellent range resolution is provided for image clarity.
Depth rated to 4,000m in Titanium enables the ISS360 to be used on the smallest to the largest autonomous vehicles. The 6,000m / 19,685 feet rated version also provides a cost effective sonar for deep water operations.
Also optionally able to provide Pitch and Roll as an additional navigation aid.
A Software Development Kit (SDK) is also available to allow complete control of the ISS360 Sonar by the AUV.
The ISS360HD is ideal for search and recovery operations. Providing a 1° angular resolution coupled with 2.5mm range resolution at lower ranges enables excellent image clarity.
Provides 360° vision to located objects in the local vicinity up to a distance of 100 meters/328 feet away.
With a wide band CHIRP signalling excellent range resolution is provided for image clarity.
Lightweight and small in size enables the sonar to quickly be transported and deployed from a number of deployment areas.
Monitor the position of equipment underwater as you deploy.
Pitch and Roll readings are also optionally available providing a clear understanding of the attitude of the equipment being deployed.
Provides 360° vision around the vehicle up to a distance of 90 meters/295 feet away.
With a wide band CHIRP signalling excellent range resolution is provided for image clarity.
The unique inductive coupling of the transducer also ensures the sonar can scan for years without requiring intervention.
Provides 360° vision around the vehicle up to a distance of 90 meters/295 feet away.
With a wide band CHIRP signalling excellent range resolution is provided for image clarity.
Monitor diving operations in low visibility water conditions.
